Tiny Copper Wire Twisting Machine Sky Blue Shaft Dia 400mm Bobbin

Name: Tiny Copper Wire Twisting Machine Sky Blue Shaft Dia 400mm Bobbin
Brand: Fuchuan
Price: 11330 USD

Wholesale Tiny Copper Wire Twisting Machine Sky Blue Shaft Dia 400mm Bobbin from china suppliers

Brand Name : Fuchuan

Model Number : FC-400B

Certification : CE

Place of Origin : China JiangSu

MOQ : 1set

Price : USD11330

Payment Terms : T/T

Supply Ability : 20SET/PER MONTH

Delivery Time : 45days

Packaging Details : normal water proof packing or wooden packing

fit for bobbin : Diameter400mm

color : sky blue/apple green

Applied for wire : copper wire/silver jacketed wire/ enamelled wire

Applied for bobbin : shaft dia400mm

Power : 3.7KW

Motor power : 3.7kw

Brake mode : Electromagnetic brake

Contact Now

Tiny Copper Wire Twisting Machine Sky Blue Shaft Dia 400mm Bobbin

Series for Model B ultra-fine high speed bunching machine

The technology of this machine is brought from Japan and put in production in JiangSu

Merits: With high rotation speed, with constant tension from empty bobbin to full bobbin, with superior quality for twist wire, it can realize bunching instead of twisting to match up to FC-100 active back-twist pay off machine. And meet requirements of customer to twist wire of small section area. The machine is driven by synchronization strap. Only need to change the capstan wheel to change the pitch. Easy to operate.

Equipment models	FC-400B
Twisting usage	It is applied to the twisting of aerospace, medical equipment, cellphone and ultra conductor(above seven pcs of bare copper wires, tinned wires, silver jacketed wires and enameled wires),double twisting for core wires.
Single wire dia(mm)	φ0.05-φ0.32
Stranding section area (mm²)	0.0137-1.0
Pitch(mm)	3.1-33.3(24zones)
Direction of lay	Optional for right or left
Outer diaboreouter width	φ400φ56300 φ300φ30185
Max rotating speed	3500(7000twist)
Main motor power	3.7KW
Inverter power	3.7KW
Tension control method	Touch screen+PLC+magnetic powder clutch,it may ensure the constant tension from empty bobbin to full bobbin
Magnetic powder clutch	0.6kgf
Protection	Machine will automatically brake when wire inside and outside is broken,the machine will automatically stop when the preset length is arrived.
Brake mode	Electromagnetic brake
Traversing method	Rolling ring drive units,winding pitch and breadth are adjustable
Operation mode	Touch screen operation
Dimension(mm)	2850L1150W1350H

Product Tags:

cable manufacturing machine

wire processing equipment

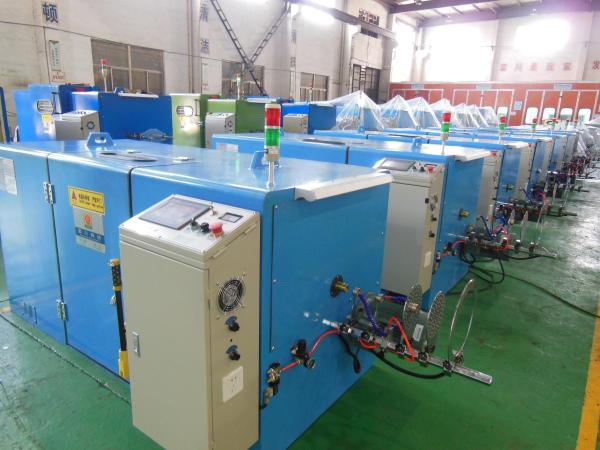

Tiny Copper Wire Twisting Machine Sky Blue Shaft Dia 400mm Bobbin Images
